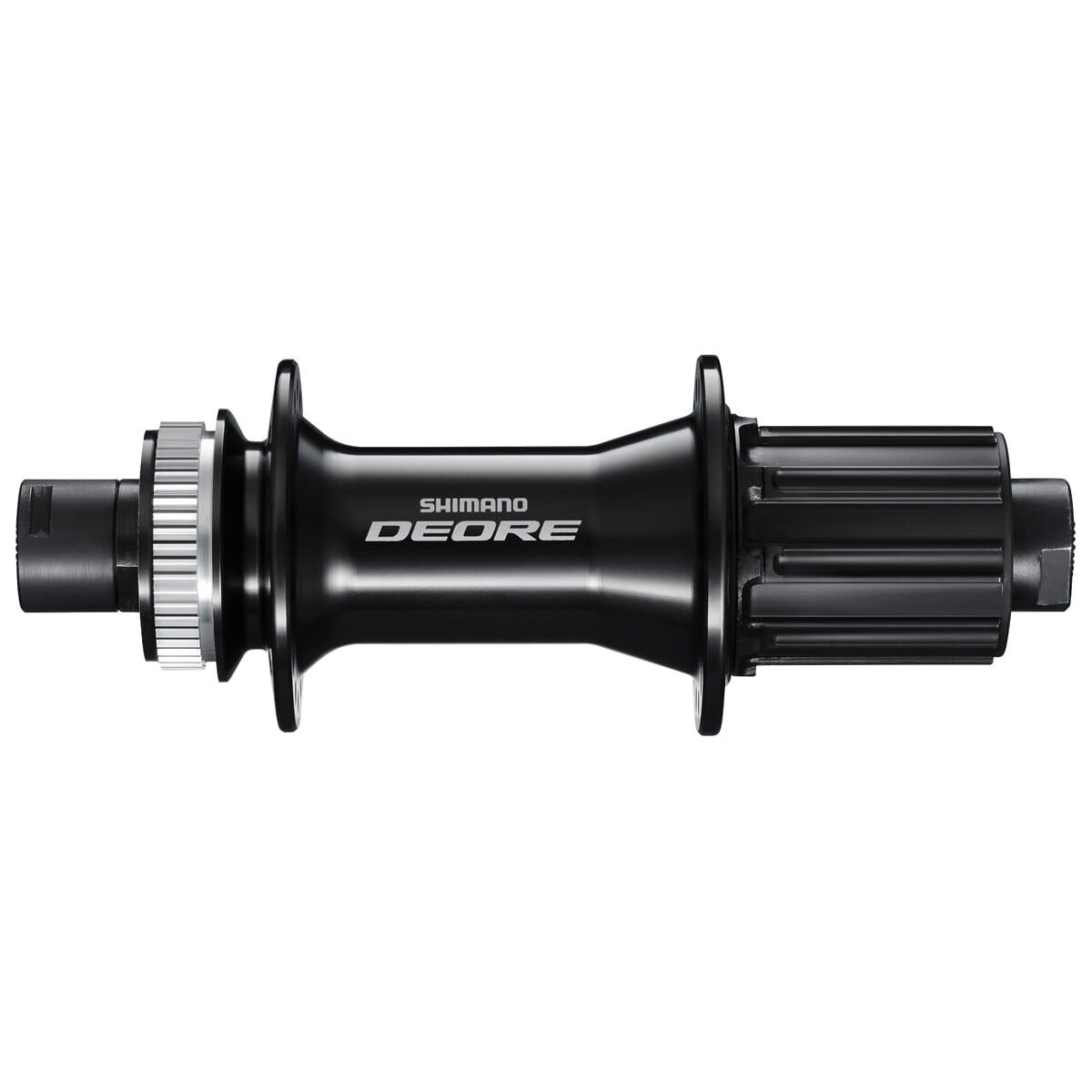

Rear hub for disc brakes (142 mm O.L.D.).
Over Locknut Dimension: 12 x 142 mm thru-axle
Spoke Hole Count: 32
Brake Type: disc Center Lock
Freehub Compatibility: 9-/10-speed Shimano/SRAM; 11-speed Shimano MTB, 11-speed SRAM NX (PG-1130)
Freehub: steel, Quick Engagement (36 times/360 degree)
Body Material: aluminium
Bearings: angular contact bearings CBN
Seal: labyrinth & contact (hub), contact (freehub)
Flange Distance (L/R): 57.4 mm (35.1 mm/22.3 mm)
Pitch Circle Diameter (L/R): 44 mm/45 mm
Steel axle
Anodized hub body
Internal grease sleeve
Flange diameter 52.8 mm (left), 53.8 mm (right)
Offset 6.4 mm
Technology:
E-Thru
The tool-less type thru-axle skewer system optimizes rigidity and weight balance and enables easy operation with a reliable internal cam mechanism. High rigidity is secured while keeping the optimum weight balance. The E-thru axle hub system minimizes the distortion of suspension while staying lightweight for riding around sharp corners at high speeds.
